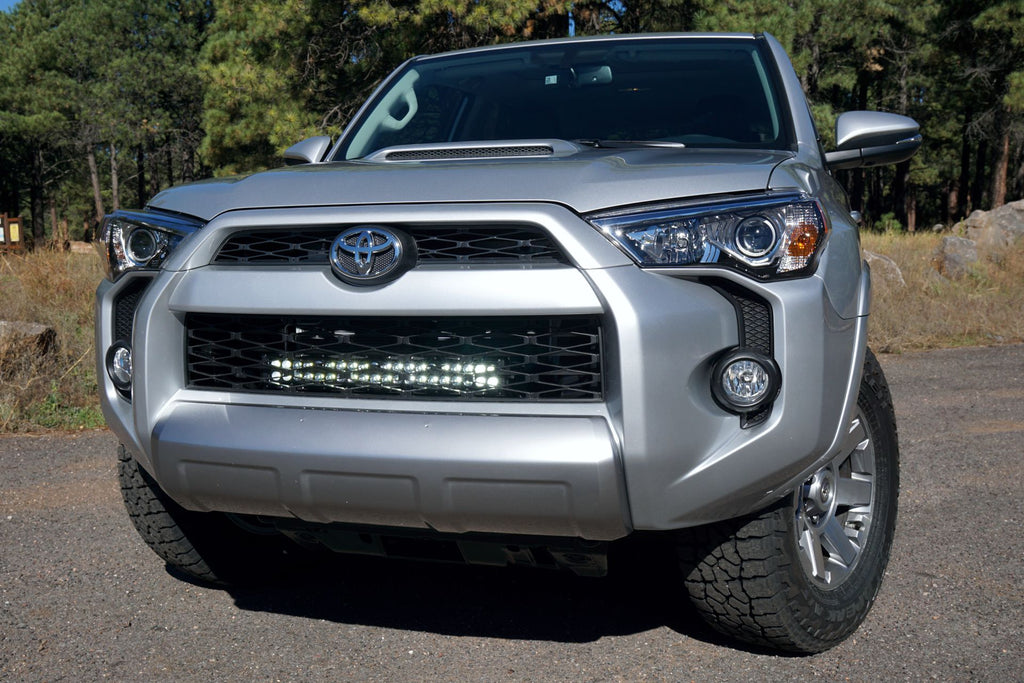

The 20" C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency.C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. KCs brackets were designed specifically to mount 20 C20 C-Series LED Light Bars behind your OE 4Runners grille for a sleek factory look and intense light output. When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 degree Spot & 90 degree Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges. Off-road race-tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust.

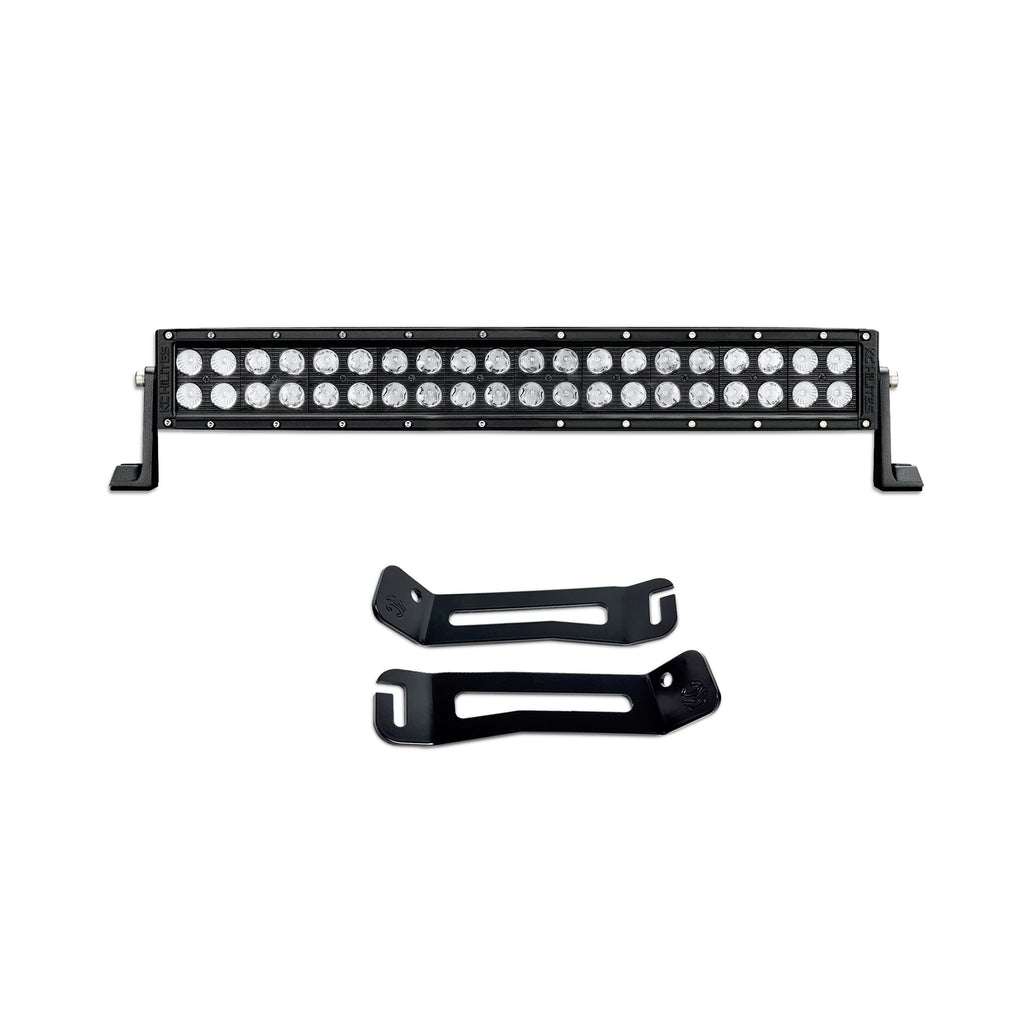

- 20" 120W C-Series LED Light Bar
- 2 x Grille Mounts brackets for 2014-2018 Toyota 4Runner
- OE Toyota Mounting for Easy Install and Factory Appearance
- Precision reflectors with forward facing LEDs
- Combo Beam Pattern
- Extruded Aluminum Housings
- GORE Membrane Barrier
Additional Attributes:
-
GTIN: 00084709003722
-
Add-On: No
-
Amp Draw: 10.0A
-
Beam Distance (Meters): 837m
-
Beam Pattern: Combo
-
Candela: 175,000 cd
-
Color Temperature: 6000K
-
IP Rating: IP67
-
LED Source: CREE LED
-
Light Temp: 6000K
-
Lumens: 10,800 lm
-
Lux at 10 Meters: 1,750 lx
-
Lux: 1,750 lx
-
Parts Included: KC 20" C-Series LED Light Bar, Wiring Harness, (2) Toyota 4Runner Grille Brackets
-
Product Dimensions: L 21.38" x H 3.09" x D 3.40"
-
Raw Lumens: 10,800 lm
-
Voltage: 9V-32V
-
Wattage: 120W
Packaging:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 23 x 6.5 x 6.5 inches
