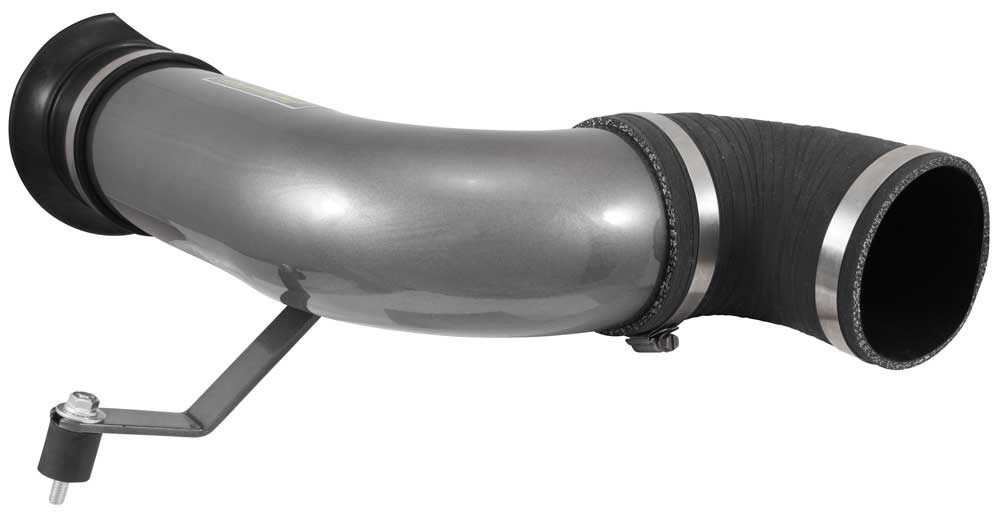

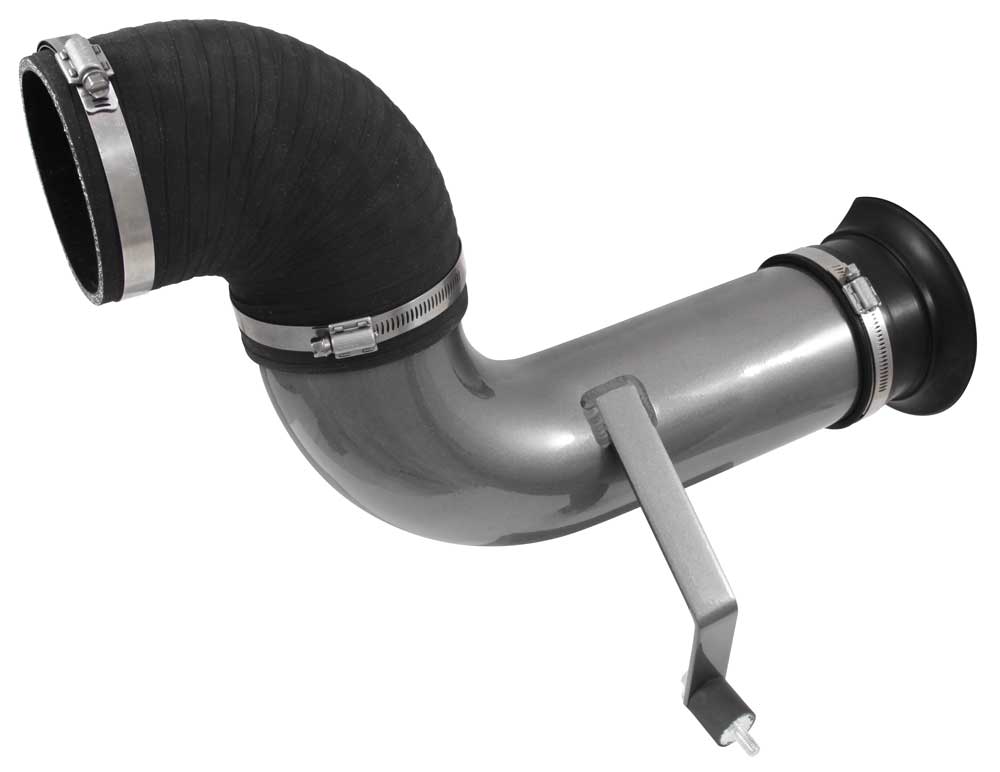

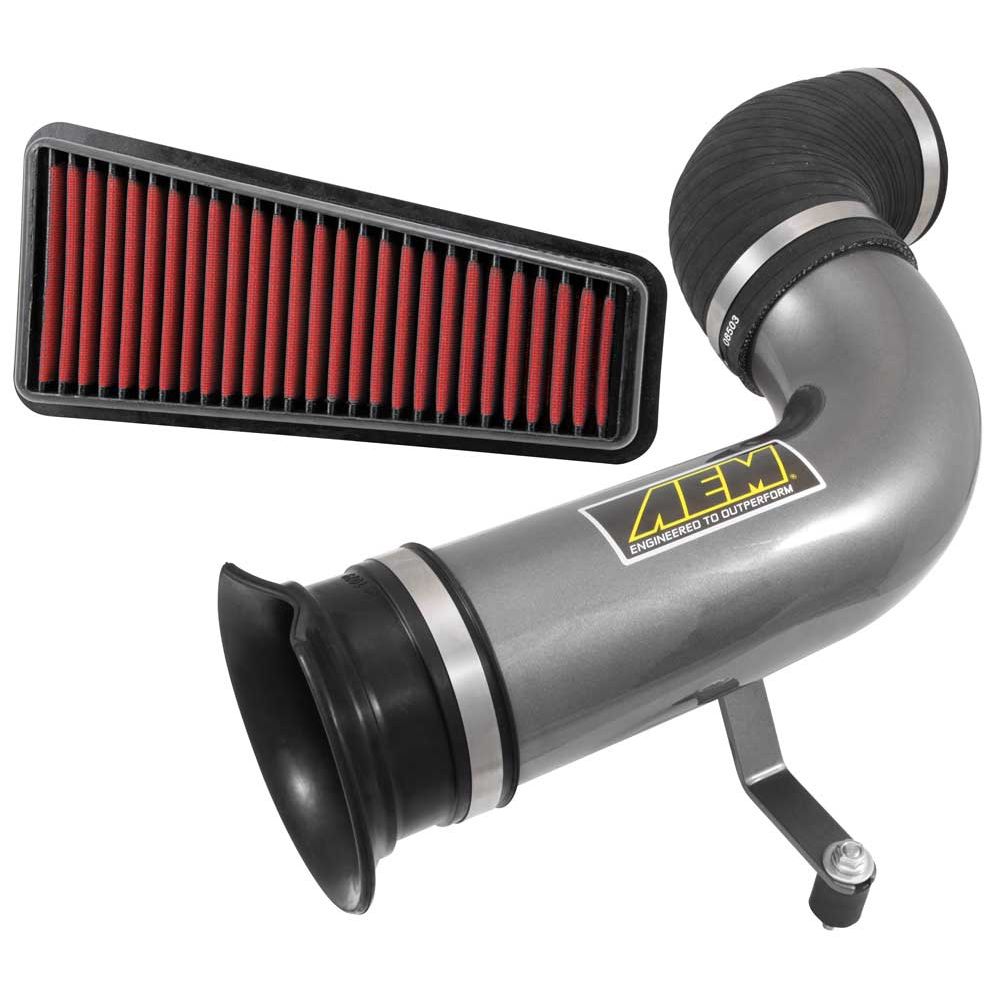

AEM AEM-22-682C AEM Cold Air Intake System

The AEM Performance Air Intake is a free-flowing, mandrel-bent aluminum tube air induction system designed to replace the restrictive factory air filter and air intake tubing while retaining the factory air box. The air intake system comes with a replacement AEM high-flow air filter and a free-flowing aluminum intake tube that easily connects to your vehicle's factory air box and engine throttle body to dramatically increase air flow into your engine. With more air flowing through the custom-tuned intake tube you experience more horsepower and acceleration throughout the engine's RPM range. The intake tube is finished with an attractive and durable powder-coat that provides a clean, high-performance look under the hood. The AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before servicing is needed (depending on driving conditions). The air intake is designed for easy installation and requires commonly available tools to do the job. The intake tube accommodates factory emissions control devices including crank case vent hoses and air injection hoses where applicable. This air intake system is street legal in all 50 US states.

Additional Attributes:

• GTIN: 00024844352873
• Air Box Included: No
• Air Filter Color: Red
• Air Filter Height: 1.5 in (38 mm)
• Air Filter Material: Non-woven Synthetic
• Air Filter Outlet Shape: Not Flanged
• Air Filter Outlet Width: 6.625 in (168 mm)
• Air Filter Washable: Yes
• CARB EO Number: D-670-16
• Clamp Color/Finish: Natural
• Clamp Material: Stainless Steel
• Clamp Style: Regular
• Clamps Included: 3
• Coupler Color/Finish: Not Applicable
• Couplers Included: None
• Estimated Horsepower Gain: 6 HP @ 5200 RPM
• Horse Power Increase: 6 HP
• Intake Pipe Color / Finish: Gunmetal Gray
• Intake Pipe Inlet Length: 28.5 in (724 mm)
• Intake Pipe Inlet Shape: Round
• Intake Pipe Inlet Width: 4 in (102 mm)
• Intake Pipe Material: Aluminum
• Intake Pipe Outlet Length: 28.5 in (724 mm)
• Intake Pipe Outlet Shape: Round
• Intake Pipe Outlet Width: 4 in (102 mm)
• Mass Air Flow Sensor Adapter Included: Mass Air Flow Sensor Adapter Included When Required
• Mounting Hardware Included: Yes
• Oil Included: Filter Is Pre-Oiled
• Package Material: Paperboard
• Package Type: Box
• Product Style: AEM Cold Air Intake System
• Replacement Filter: 28-20281
• RPM: 5200
• Street Legal In All US States: Yes
• TUV Approved (Europe): No
• Warranty: Limited Lifetime
• Weight: 7.4 lb (3.4 kg)

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.2000 x 14.5000 x 14.9370 inches
