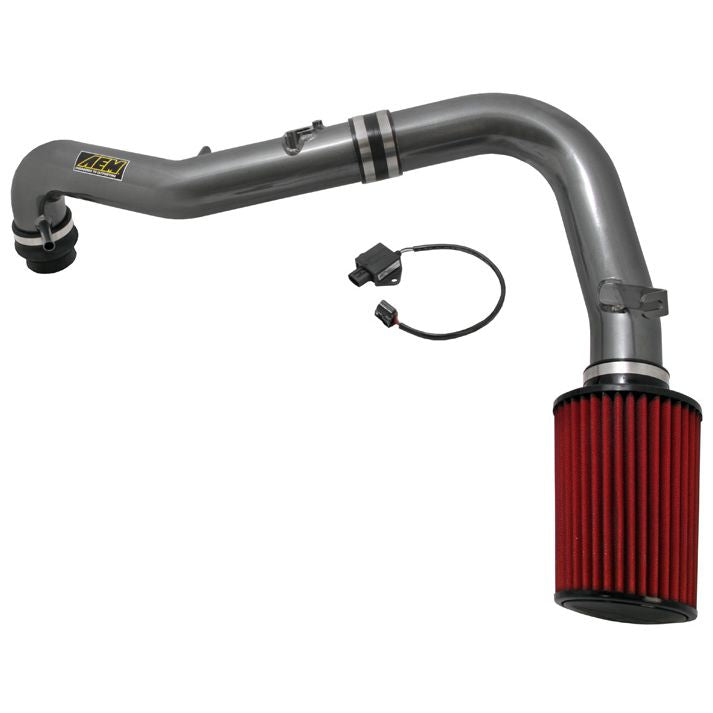

AEM AEM-41-1401C AEM Electronically Tuned Intake System

The AEM 41-1401C Electronically Tuned Air Intake System represents the next generation of cold air intake technology resulting in larger horsepower and torque gains for specific Scion tC models by precisely tuning mass air flow sensor signals to the engine. The restrictive factory air filter and air intake housing are replaced with this advanced AEM air intake system. Air enters the system through an AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The intake tubing keeps a constant diameter throughout its length allowing larger volumes of air to pass through than some traditional cold air intake systems. The AEM intake tubing is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to also accommodate the engine's factory emissions control devices including the mass airflow sensor and engine breather hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 41-1401C vehicle applications to determine the legal status for each vehicle.

Additional Attributes:

• GTIN: 00024844257833
• Air Box Included: No
• Air Filter Color: Red
• Air Filter Height: 8.125 in (206 mm)
• Air Filter Large End Diameter: 6 in (152 mm)
• Air Filter Material: Non-woven Synthetic
• Air Filter Outlet Length: 3 in (76 mm)
• Air Filter Outlet Shape: Round
• Air Filter Outlet Width: 3 in (76 mm)
• Air Filter Washable: Yes
• California Restricted: Not legal for sale or use in California
• Clamp Color/Finish: Natural
• Clamp Material: Steel
• Clamp Style: Regular
• Clamps Included: 5
• Color: Gunmetal Gray
• Coupler Color/Finish: Not Applicable
• Couplers Included: None
• Estimated Horsepower Gain: 9.00 HP @ 6400 RPM
• Horse Power Increase: 9 HP
• Intake Pipe Color / Finish: Gunmetal Gray
• Intake Pipe Inlet Length: 25 in (635 mm)
• Intake Pipe Inlet Shape: Round
• Intake Pipe Inlet Width: 3 in (76 mm)
• Intake Pipe Material: Aluminum
• Intake Pipe Outlet Length: 27 in (686 mm)
• Intake Pipe Outlet Shape: Round
• Intake Pipe Outlet Width: 3 in (76 mm)
• Mass Air Flow Sensor Adapter Included: Mass Air Flow Sensor Adapter Included When Required
• Mounting Hardware Included: Yes
• Oil Included: No Filter Oil Required
• Package Material: Paperboard
• Package Type: Box
• Product Style: AEM Cold Air Intake System
• Replacement Filter: 21-2038DK
• RPM: 6400
• Street Legal In All US States: No
• TUV Approved (Europe): No
• Warranty: Limited Lifetime
• Weight: 7.3 lb (3.3 kg)

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.3750 x 12.2000 x 11.6000 inches
